Gen2.1 CP4 Disaster Prevention Kit with Return Filter Assembly (2011+ 6.7L Power Stroke)

New and improved Gen2.1 CP4 Disaster Prevention Kit for 6.7L Power Stroke (2011+)

S&S Diesel Motorsport returns with a significantly refined Disaster Prevention Kit that protects your fuel system from CP4 failure debris — validated through extensive real-world testing. The Gen2.1 adds a billet return filter head and all OE-style quick connects for a cleaner install and superior debris management.

Key Features

• Improved Protection: Safeguards injectors, rails, lines, and tank from CP4 debris
• Real-World Proven: Thoroughly validated and proven to work in real-world testing
• Easy Install: All OE-style quick connects — no cutting, compression fittings, or extra threaded joints
• Clean Fuel Split: Fuel supply split-off occurs 25 inches from the CP4 to prevent back-feed contamination
• Return Filter System: Billet return filter head isolates debris before it reaches the tank
• Standard Spin-On Filter: Accepts readily available Donaldson P550943 (9-micron @ 99% efficiency)
• High-RPM Capability: Improves CP4 output past 3,000 RPM (see data below)
• Extended Range: Can extend drivable range in the event of a CP4 failure
• One Part Number Fits All: Single kit fits 2011+ 6.7L Power Stroke
• Compliance: CARB Compliant (EO# D-756-6)
• Built Proudly: Made in the USA

Why Gen2.1 Over the Original Kit?

• Cleaner Install: OE quick connects eliminate cutting the factory line and avoid compression fittings (common leak/debris sources)

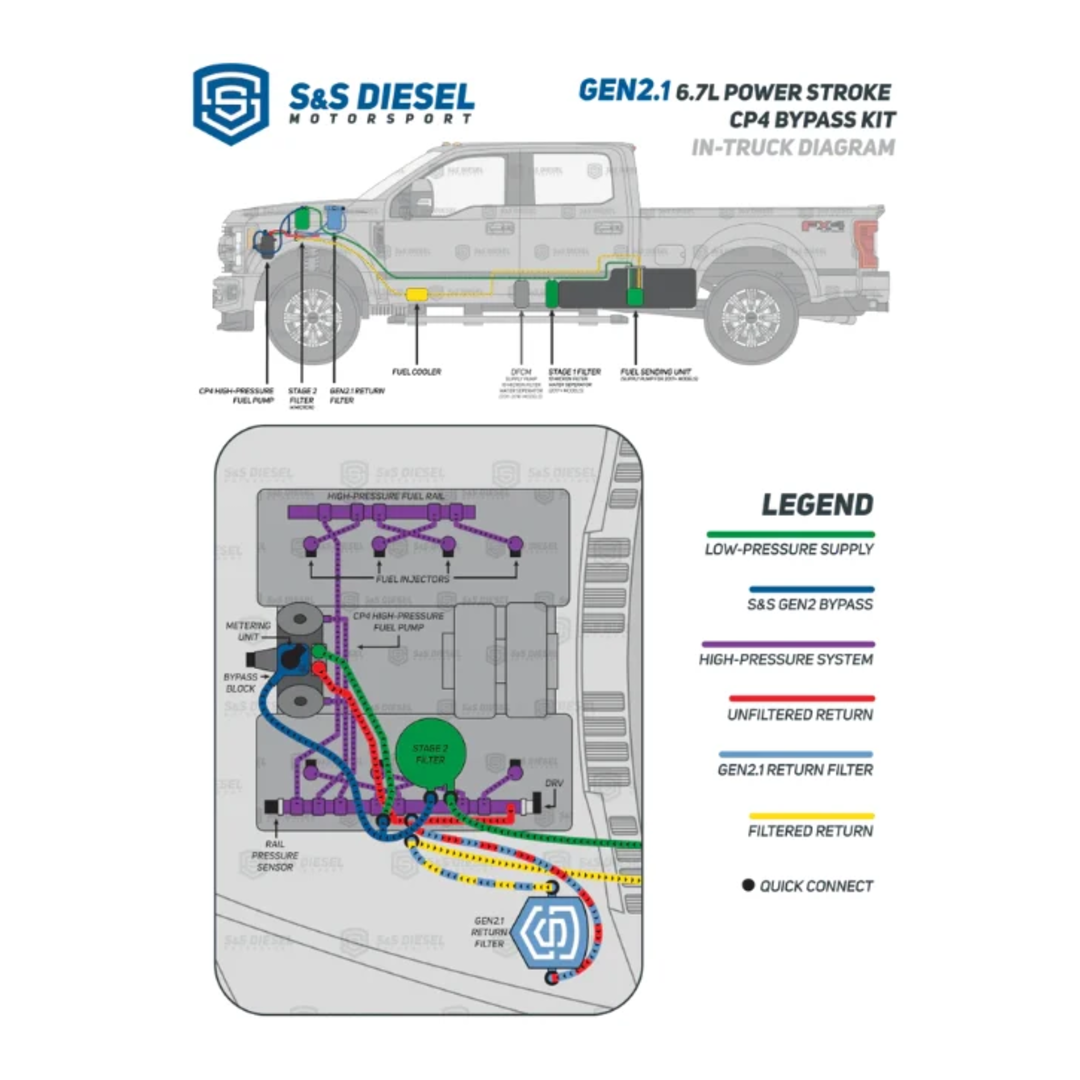

• Smarter Fuel Routing: Dual supply lines split 25″ from the pump to reduce the chance of contaminated case fuel back-feeding
• Better Debris Control: Return fuel is filtered before reaching the tank, reducing or eliminating tank clean-out after a failure

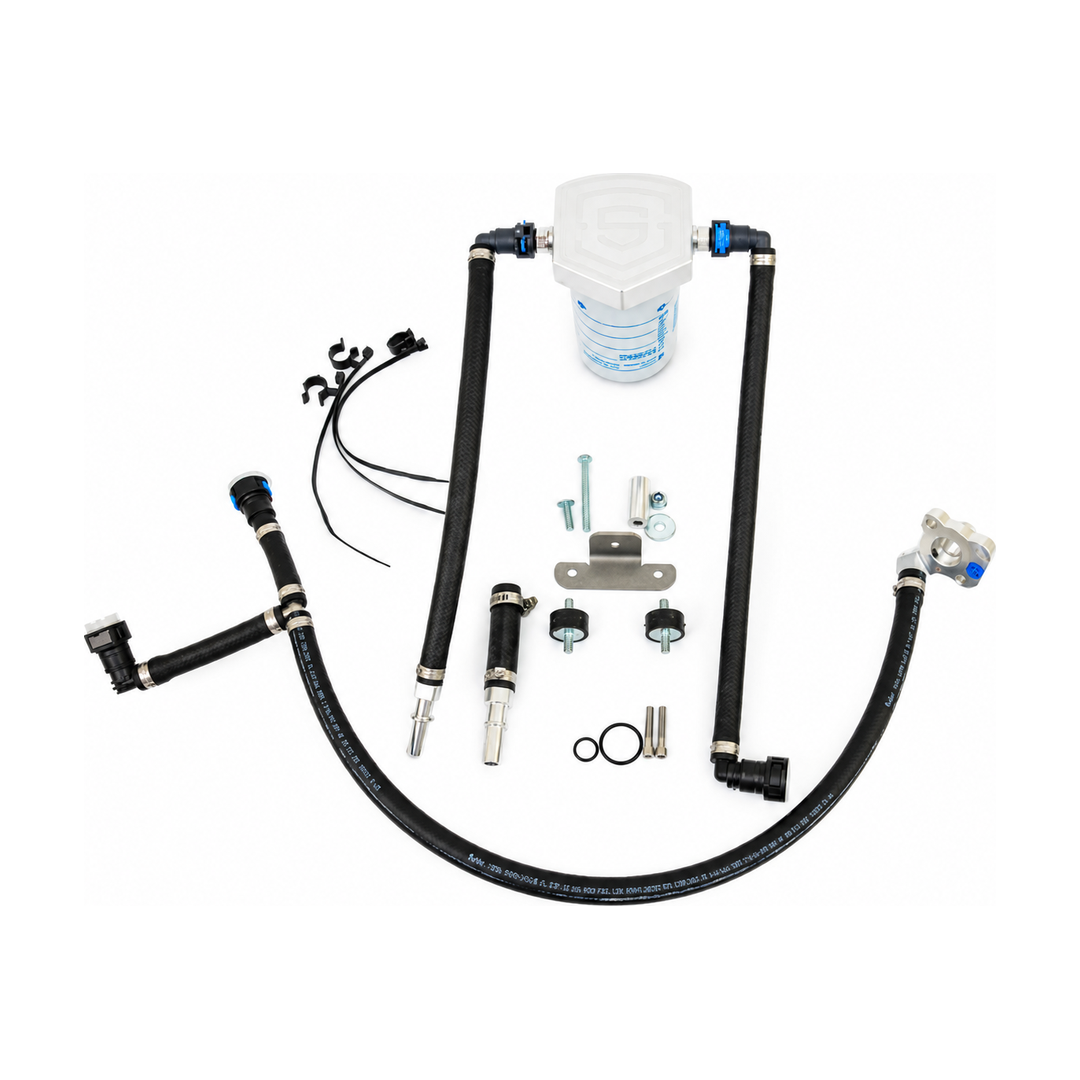

What’s Included

• Gen2.1 CP4 Disaster Prevention Kit assembly with OE-style quick connects
• Billet return filter head (Gen2.1)
• Donaldson P550943 spin-on fuel filter (9-micron @ 99% efficiency)
• All required lines, fittings, and mounting hardware

Part Numbers & Options

• Main Kit: #CP4-6.7F-BP-G2.1 — fits 2011+ 6.7L Power Stroke
• Return Filter Assembly (Gen2.1): #CP4-6.7F-BP-G2.1-RFA (sold separately)
• Filter Head Upgrade (for existing Gen2 owners): #CP4-6.7F-BP-G2.1-FHU (sold separately)
• Replacement Filter: Donaldson P550943 (commonly available)

Compatibility

2011+ Ford Super Duty with 6.7L Power Stroke diesel.

Testing & Media

See the “Does it really work?” video series demonstrating a forced CP4 failure with the Gen2.1 kit installed and how the system contains debris.

Pricing Note

• Gen2.1 Disaster Prevention Kit: $400.00 USD
• Gen2.1 Fuel Return Filter Assembly: $160.00 USD
• Gen2.1 Filter Head Upgrade (for Gen2 owners): $120.00 USD

Pricing provided for reference; final pricing and availability may vary.

Shipping & Support

• Ships from the USA; shipping calculated at checkout
• Professional installation recommended
• Support available for product selection and installation questions
